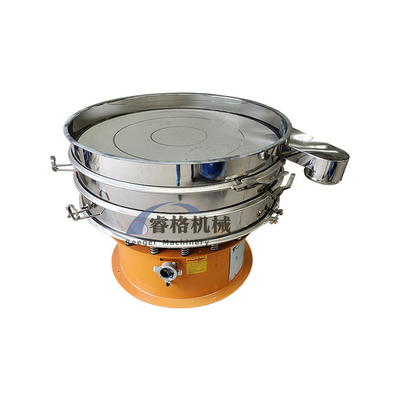

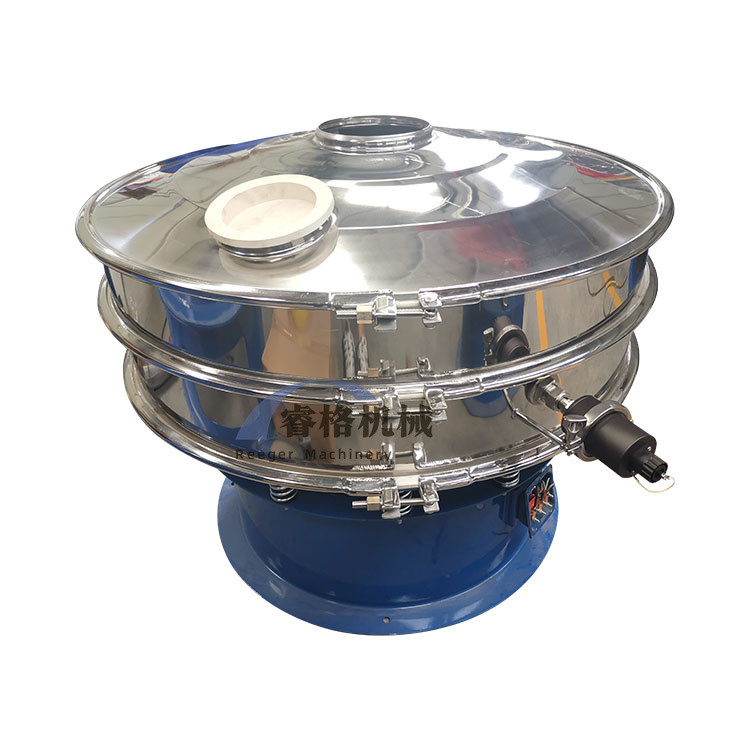

Harvest Spirulina dia 1200mm Single Layer Vibro Sieve
Brief info:
Single Layer Vibro Sieve is a kind of high efficient sieving equipment which often is used for impurity removal or grading for powder, particle liquid etc. It can be used for wet or dry material filtering and sieving. Sinlge layer vibro sieve often is used to impurity removal.
Main working principles:
The rotary vibrating screen’s working principle is the eccentric weight installed in the electrical axis transform the motor's rotary motion into horizontal, vertical, and inclined three dimensional movement, then this movement passed to the screen surface. By adjusting the upper and lower ends of eccentric weight’s phase angle, which can change the trajectories of materials on the screen surface.
Features:
- High efficiency, elegant design and durable, available for any powder and viscous liquid.
- Easy to clean and operate, unique grid design make mesh use longer;
- Quick-open design make the mesh replace easier, it only takes 3-5 minutes
- Lower noise, less than 75dB.
- Automatic discharge of impurities and coarse materials.
Main parts and techinics
Base, motor, vibration body, bottom frame, screen mesh, cover, clamp etc The base can be carbon steel, stainless 304, stainless 316. For carbon steel, it can be painting, spraying plastics. For stainless, it can polishing, sand blast, teflon etc.
Parameters:
| Model |
R Series |
| Dia |
1200mm |
| Layer |
1 layers |
| Material |
contact part stainless/full stainless 304/316 |
| Screen mesh |
30micron |
| Motor power |
1.5KW |
| Customized item |
Inlet, discharging port, hopper, iron separator |
| Cleaning way |
Bouncing ball or ultrasonic system |
| HS code |
847410000 |
Applications
Food Stainless Round Vibrating Sieve are often used in the following fields:
Sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, vegetable and pickle canneries.
FAQ
In order to provide the most suitable mode and price, please provide the following info:
- What material you will sieve?
- How many is the sieving capacity?
- Do you use it to grade or impurity removal?
- How many is the material density, moisture, oily etc?
Relative products
Reeger machinery not only provide sieving and conveying equipment, but also matching product such mixing, grinding, drying, packing machine etc.
About us
Xinxiang Reeger Machinery Equipment Co., Ltd specialize in power particle material sieving, filtering, drying,mixing and conveying equipment with rich industry experience and personalized service in China. We also can provide integral solution in some industries, such as herb, spics, BSF, mealworm processing etc.
Our products includes rotary vibrating screen, linear vibrating sieve, tumbler screen, trommel screen, rectangular gyratory sifter, lab sieve shaker, filter press etc and the relative equipment with micro wave dryer, rotary dryer, oil press, mixing machine, conveyor, grinder,packing machine etc.
Our products have got CE certificate and are exported to US, France, Canada, Romania, South Africa, Malaysia etc.
Our company adheres to the core business philosophy of customer-oriented focus. From the first contact, we have continued to listen patiently, select professionally and deliver with high quality. Products are widely used in food powder, environmental protection biological insects, dried fruit and vegetable spices, chemically synthesized powder particles, plastics, resins, Chinese and Western medicines, paint coatings, ceramics, metal powders, mineral powders, electronic magnetic materials, paper pulp, environmental protection materials and other industries .
