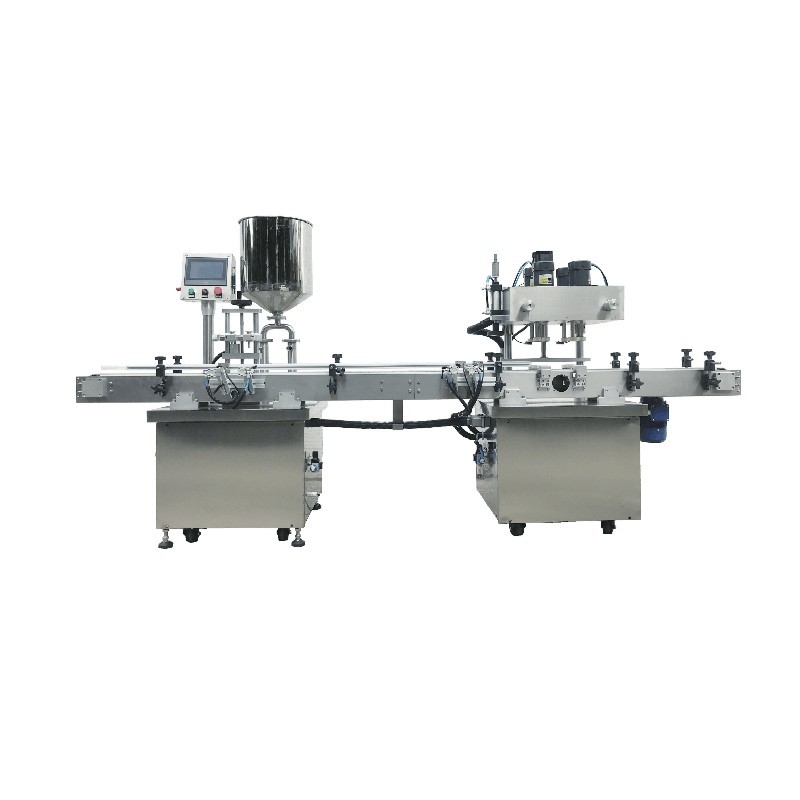

laundry detergent filling and capping machine

Large Image : laundry detergent filling and capping machine

Product Details:

Place of Origin:	Xinxiang, Henan
Brand Name:	REEGE MACHINERY
Model Number:	RAP Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$3500 /ONE
Packaging Details:	Plastics film cover
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 SET PER MONTH

Contact Now

Detailed Product Description

Capping Accuracy:	≤±0.5%	Capping Speed:	30-60 Bottles/min
Control System:	PLC	Dimension:	39009001815mm
Filling Accuracy:	±1%	Filling Speed:	30-60 Bottles/min
Filling Volume:	50-500ml	Material:	Stainless Steel
Operation Mode:	Automatic	Power:	220V/50Hz
Product Name:	Filling And Capping Machine	Warranty:	1 Year
Weight:	500Kg

laundry detergent filling and capping machine

Product brief

The filling and capping adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material.

In food industry like, tomato paste, chilli sauce, honey, butter, ketchup lunch meat, mayonnaise, marmadele, etc.

The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.

Features

It can solve quick model change and meet customer with more model demand
Be suitable for wide range of bottle types, even irregular-shape bottles,no need special adjustment;
Rapid filling speed, adopting servo filling---high filling accuracy, 0.5% filling deviation;
Double screw cap reduce the capping time and ensure the tightness of each cap- positioning function of the pump head and adjustable torque of the screw cap.

Technical parameters


			Machine Model
			RYF1968-4


			Working voltage and power
			220V AC 50HZ, 3KW


			L*W*H(CM)
			600*110*236


			Weight (KG)
			1000KG


			Filling Speed (Bottles/Min)
			40-80


			Filling capacity (Ml)
			500-5000


			Material
			304/316 stainless



Application
Liquid cosmetics packing machine is suitable for Cosmetics, food, industrial oil / paste, e.g. shampoo, hair conditioner, laundry detergent, shower gel, sour milk, cream,cooking oil, industrial oil, etc.

Suitable bottles type
Liquid cosmetics packing machine is suitable for round bottles, square bottles, irregular-shape bottles, plum vases, plastic bottles, glass bottles, porcelain bottles, etc.; all the bottles that can stand on the conveyor line are usable.

FAQ
In order to provide the quick model and quotation, please provide the following info
What product you will pack?
How many capacity you need to fill?
How many is the packing speed?
Which kind of bottle you will use?

Contact Details

Xinxiang Reeger Machinery Equipment Co., Ltd

Contact Person: Mrs. Mary

Tel: 86-13233810175

Machine Model	RYF1968-4
Working voltage and power	220V AC 50HZ, 3KW
LWH(CM)	600110236
Weight (KG)	1000KG
Filling Speed (Bottles/Min)	40-80
Filling capacity (Ml)	500-5000
Material	304/316 stainless
