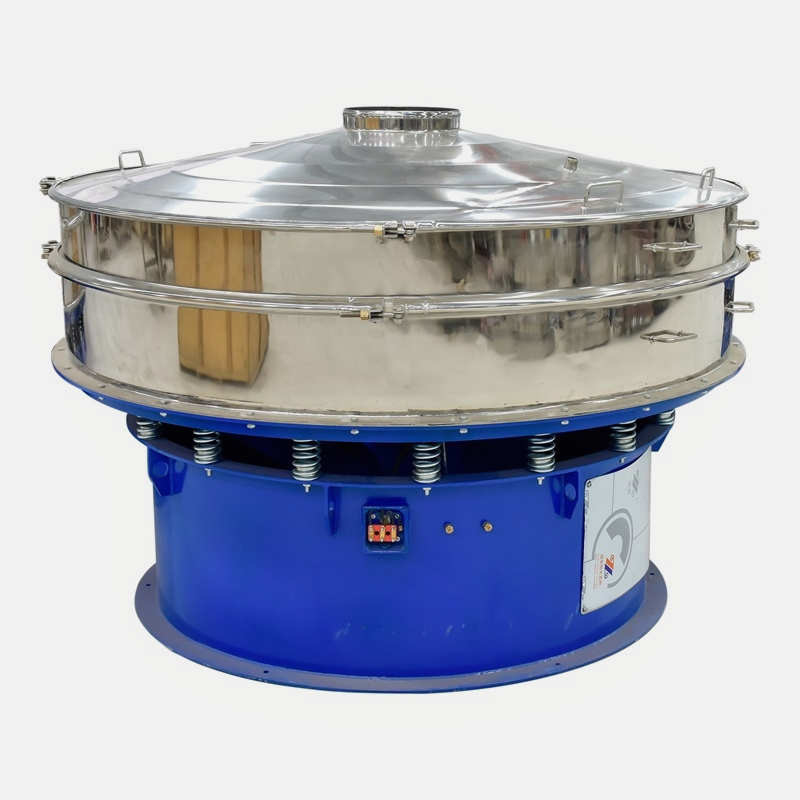

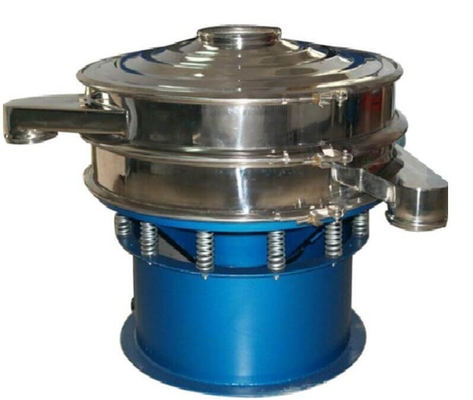

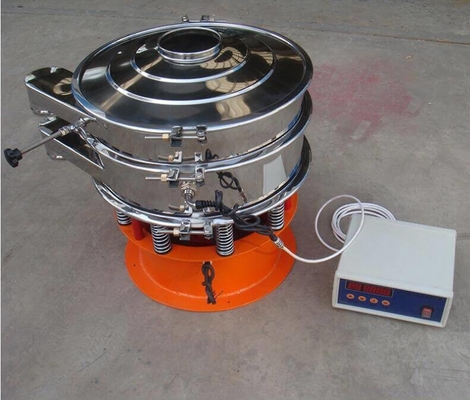

1 layer vibrating sieve machine for sale

Brief info:

Reeger vibro sieving machine is one kind of high-precision screening and filtering machine .

It is a high accuracy fine powder sieving machinery and is suitable for particle(granule) powder

and mucus material sieving.

Main working principles:

The vertical vibrating motor is the vibrating power of the machine, There are two eccentric blocks on the vibrating motor's

upper and down. The eccentric blocks mainly make cubic element movement (horizonal, up-down, and tilting) when the

motor working. By changing the eccentric block's included angle (the upper and down) and numbers, the track that material

moves on the mesh, will be changed So that the screening target will be realized.

Features:

1. Easy to replace the sieve mesh and only need to take 3-5 min;
2. No plugging ,the sieving can be up to 500um or 0.028mm;
3. The sieve can be up to max 5 layers and get 6 size grading;
4. easy to install and move.With a small volume and the light weight.
5. Special mesh frame design ensure long sieving life for mesh, and the screen mesh is easy to change and clean.
6. All- closed design, no dust pollution
7. Good enclose and little noise;
8. The outlet's location can be adjusted to anywhere you need, it is very easy to form producing line. We offer connecting drawing for you

Parameters:

Applications

Any particle, powder and mucus in various powder industries can be screened within a certain range.
Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, rubber, plastic, etc.
Abrasive and ceramic industries: alumina, quartz sand, mud, spray soil particles.
Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soymilk, yeast, fruit juice, soy sauce, vinegar, etc.
Papermaking industry: coating coating, clay slurry, black and white liquid, waste liquid, papermaking liquid and waste water recovery.
Metallurgy industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and Western medicine granules, etc.
Environmental protection: garbage, human and animal excrement, waste oil, food waste water, waste water processing, etc.
