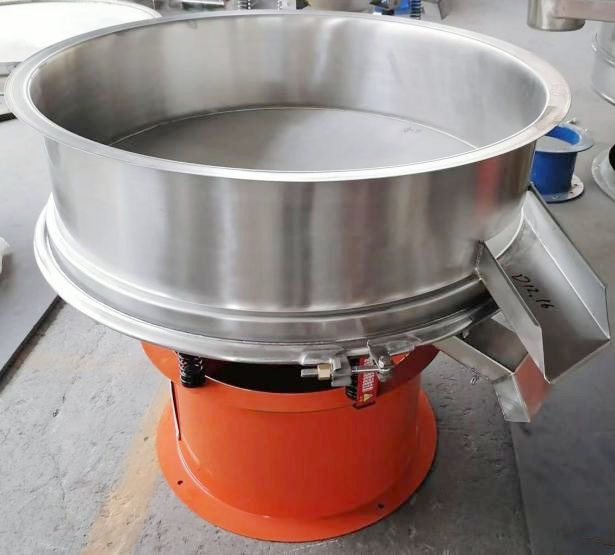

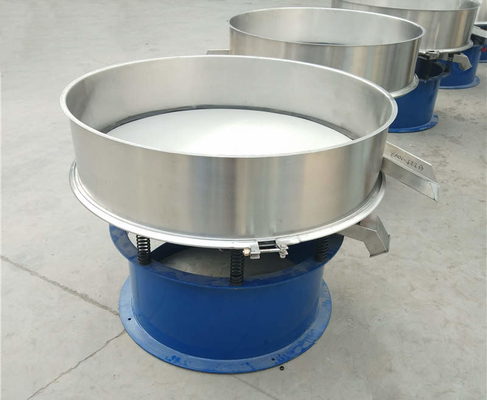

High Quality Vibratory Screening Machine

Vibro sieving machine brief info:

1. ·Diameter of screen(mm): 400-2000
2. ·Sieving precision: 500 mesh
3. · Layer:1-5
4. ·Power(KW): 0.25-4
5. ·Voltage for: 110V 220V 240V 380V 415V 450 V and 550V
6. ·Structure material option:316Lstainless steel,304 stainless steel, carbon steel.
7. ·Application: Powder,Granules, Liquid,Bulk Solids and other sizing needs.

Reeger vibro sieving machine is one kind of high-precision screening and filtering machine .

It is a high accuracy fine powder sieving machinery and is suitable for particle(granule) powder

and mucus material sieving.

Vibrating screen machine Main working principles:

The vertical vibrating motor is the vibrating power of the machine, There are two eccentric blocks on the vibrating

motor's upper and down. The eccentric blocks mainly make cubic element movement (horizonal, up-down, and

tilting) when the motor working.

By changing the eccentric block's included angle (the upper and down) and numbers, the track that material

moves on the mesh, will be changed So that the screening target will be realized.

Vibro sieving machine Features

1. Easy to replace the sieve mesh and only need to take 3-5 min;
2. No plugging ,the sieving can be up to 500um or 0.028mm;
3. The sieve can be up to max 5 layers and get 6 size grading;
4. easy to install and move.With a small volume and the light weight.
5. Special mesh frame design ensure long sieving life for mesh, and the screen mesh is easy to change and clean.
6. All- closed design, no dust pollution
7. Good enclose and little noise;
8. The outlet's location can be adjusted to anywhere you need, it is very easy to form producing line. We offer connecting drawing for you.

Vibrating screen machine details:
